Introduction
A network switch failure can disrupt business operations by causing connectivity issues, packet loss, and downtime for connected devices. Whether using a managed or unmanaged switch, diagnosing and fixing switch failures requires a structured approach.
This guide will help you troubleshoot and resolve network switch failures, ensuring stable connectivity and network performance.
What Causes a Network Switch Failure?
A switch failure can result from several issues, including:
✅ Power Supply Issues – Switch not powering on or experiencing power fluctuations.
✅ Faulty Ports or Cables – Damaged Ethernet cables or non-functional ports.
✅ Looping or Broadcast Storms – Overloaded network due to improper switch connections.
✅ Firmware Corruption or Software Bugs – Outdated or buggy switch firmware.
✅ Overheating or Hardware Failure – Excessive heat causing switch shutdowns.
✅ Misconfigured VLAN or STP Settings – Incorrect configurations blocking network traffic.
Let’s go through step-by-step troubleshooting to identify and fix network switch failures.
Step 1: Check Power and Physical Connections
If a switch is not powering on or behaving inconsistently, first check:
🔹 Power Supply:
- Ensure the switch is plugged into a working power source.
- Try a different power cable or power adapter (if applicable).
- If using Power over Ethernet (PoE), verify the PoE injector or power budget.
🔹 Check for Overheating Issues:
- Feel the switch’s surface; if it’s too hot to touch, unplug it for 10 minutes and restart.
- Ensure proper ventilation around the switch.
If the switch powers on but devices aren’t connecting, move to Step 2.

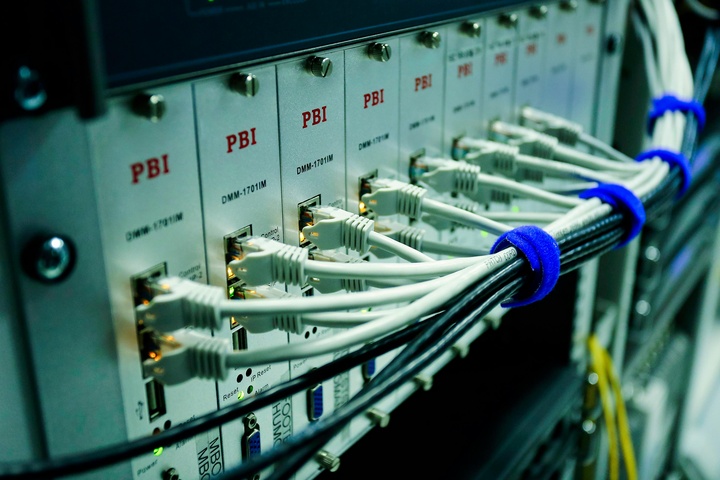

Step 2: Test Network Cables and Switch Ports
How to Identify Faulty Ports or Cables:
1️⃣ Replace Ethernet Cables:
- Try a different cable to rule out cable damage.
- Use Cat5e, Cat6, or higher-quality cables for gigabit speeds.
2️⃣ Try Different Ports:
- Plug a device into another port on the switch.
- If one port is faulty, the switch may still function using other ports.
3️⃣ Check Link Lights:
- If port LEDs are off, there may be a problem with the NIC, cable, or switch itself.
Run:
lua
CopyEdit
show interfaces status
- Look for error messages or disabled ports.
If connections still fail, move to Step 3.
Step 3: Identify Network Loop and Broadcast Storms
A network loop can cause switch failures due to excessive broadcast traffic.
How to Detect and Fix Loops:
🔹 Symptoms of a Network Loop:
- High CPU usage on the switch.
- Frequent network slowdowns or outages.
- Excessive broadcast packets flooding the network.
🔹 Check for Redundant Cable Connections:
- Ensure no two ports are connected to each other.
- If using multiple switches, confirm proper uplink configuration.
🔹 Enable Spanning Tree Protocol (STP) to Prevent Loops:
CopyEdit
spanning-tree mode rapid-pvst
pgsql
CopyEdit
show spanning-tree summary
If STP is disabled, enable it and restart the switch.
If loops aren’t the issue, move to Step 4.
Step 4: Reset and Reconfigure the Switch
If switch settings are corrupted or misconfigured, performing a reset can help.
How to Reset a Managed Switch:
🔹 Soft Reset (Without Losing Configurations):
nginx
CopyEdit
reload
🔹 Factory Reset (Erase All Configurations):
arduino
CopyEdit
write erase
reload
For unmanaged switches, power cycle the switch by unplugging and reconnecting it after 30 seconds.
If resetting doesn’t fix the issue, move to Step 5.
Step 5: Update Switch Firmware
Outdated firmware can cause bugs, security vulnerabilities, or performance issues.
How to Check and Update Firmware:
1️⃣ Log into the switch’s web interface or CLI.
2️⃣ Check the current firmware version:
pgsql
CopyEdit
show version
3️⃣ Download the latest firmware update from the manufacturer’s website.
4️⃣ Upload and install the firmware update.
5️⃣ Restart the switch after updating.
If issues persist after updating firmware, move to Step 6.
Step 6: Verify VLAN, Trunk, and Port Settings
Incorrect VLAN or trunk settings can cause devices to lose connectivity.
Check VLAN Assignments:
🔹 Run the following command on a managed switch:
sql
CopyEdit
show vlan brief
🔹 If a VLAN is missing, add it:
pgsql
CopyEdit
vlan 10
name Data_VLAN
exit
Check Trunk Port Configuration:
🔹 Verify if VLANs are passing correctly:
sql
CopyEdit
show interfaces trunk
🔹 If needed, allow VLANs on the trunk port:
nginx
CopyEdit
switchport trunk allowed vlan 10,20,30
If VLAN settings look correct, move to Step 7.
Step 7: Check for Security and Access Control Issues
Some switches have security policies that can block certain ports or devices.
Check Port Security Settings:
🔹 Run:
pgsql
CopyEdit
show port-security
🔹 If a port is disabled due to a security violation, re-enable it:
perl
CopyEdit
interface GigabitEthernet0/2
no shutdown
exit
Check MAC Address Table for Anomalies:
🔹 Run:
css
CopyEdit
show mac address-table
🔹 If multiple MAC addresses are mapped to the same port, check for unauthorized devices.
If security settings are fine but the issue persists, move to Step 8.
Step 8: Test and Replace Faulty Hardware
If all software fixes fail, the switch hardware itself may be failing.
🔹 Test with Another Switch:
- Replace the current switch with a working one to see if the issue persists.
🔹 Look for Physical Damage:
- Burn marks or capacitor swelling indicate hardware failure.
🔹 Contact Manufacturer for Support or Warranty Replacement.
If a switch fails despite all troubleshooting steps, replacing it may be the only option.
Best Practices to Prevent Future Switch Failures
✅ Use surge protectors or UPS systems to prevent power-related failures.
✅ Regularly update firmware to fix security vulnerabilities.
✅ Enable Spanning Tree Protocol (STP) to prevent network loops.
✅ Monitor switch performance using SNMP or network monitoring tools.
✅ Label and document all switch ports and VLAN assignments for easy troubleshooting.
